Products and Services Laser cutting equipment

MW-GH60-AUTO

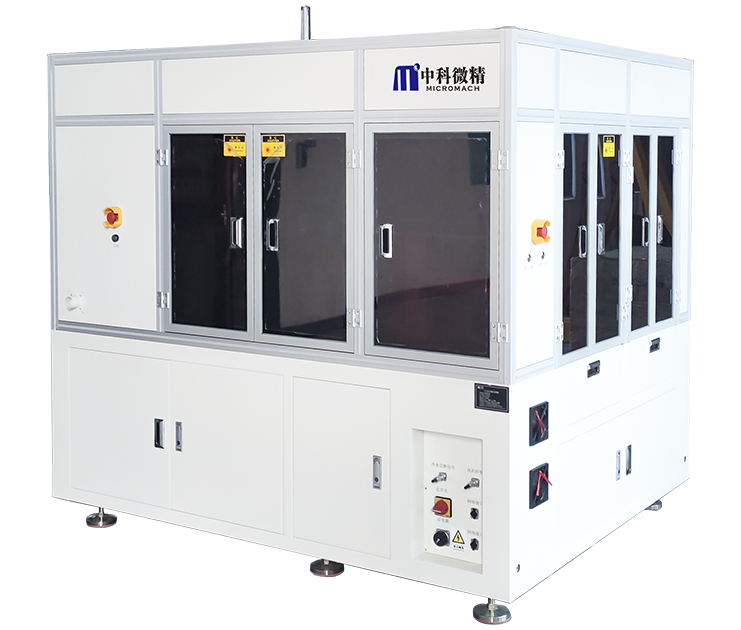

Laser low-temperature welding equipment

Manual Download

technical advice

product overview

The automatic laser welding machine is mainly developed for car camera welding, which can control the temperature of the entire welding process at a low temperature, without damaging the internal components of the camera, and has automatic loading and unloading function, supporting manual and automatic modes. It also has the welding follow function, which supports the manual welding and blanking mode of the camera housing with cables, and has the process window data, upper MES system and AOI module.

function characteristics

低温焊接，焊接强度可达200kg；

焊接深度和焊缝宽度均大于0.5mm；

焊接部位纹路平齐、无黑点、无气泡爆炸。

Parameter indicators

Power (w)	150(QCW)
Laser wavelength (nm)	1064
Host workstation (/)	6工位
Linear module travel (mm)	≥50
Linear module repeatability (mm)	±0.02
Tray stacking thickness(mm)	≤500
AOI vision camera (pixels)	2000万
Positioning camera (pixels)	2000万
Equipment production capacity UPH (pcs/h)	220
Equipment weight (kg)	2000
